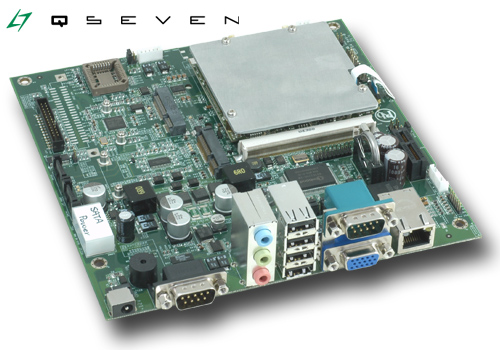

>visionsystems.de/Q7-VIA NANO-CB (3803.html)   Features Development package for Q7 module Integrates Q7-VIA NANO CPU module Mini-ITX for easy implementation Supports all Q7 standard interfaces Express card 34/54 slot RS232, CRT, LPT Supports PATA Supports WLAN & Bluetooth 12V single power supply     Zoom in Picture Q7-VIA NANO-CB Quick Link: | Features | Overview | External Interfaces | Internal Interfaces | Power and Environment | Environmental | Ordering Information | |   Overview The Q7-VIA NANO-CB carrier board serves for hardware development and software compatibility test purposes. It has the practical Mini-ITX form factor (170×170 mm²) and connects to the Q7 module over the 230pin MXM connector. While the Q7 CPU module functions as the PC core, the carrier board has to put all non legacy high speed interfaces of a Q7 CPU on standard PC connectors and possibly to generate also the older legacy interface standards for complete OS compatibility tests. Mass storage can be connected over one SATA and/or two PATA IDE connectors. Graphic Displays can choose DVI, 24-Bit LVDS channel or CRT. USB 2.0, Audio, Gigabit LAN belong to standard interfaces. For compatibility purposes the carrier board also offers LPT, RS232 and Keyboard/Mouse as legacy interfaces. To help implementing versatile applications the carrier board optionally supports a dual WLAN & Bluetooth module connected over a PCIe lane and additionally has one 34/54 Express card slot. The carrier board has been tested with Windows XP SP3, using Q7-VIA NANO as CPU module. Read the News Article…   External Interfaces Slot 1 × 34/54 Express card PCI 1 × MiniPCIe connector Display 1 × DVI 1 × CRT USB 4 × USB 2.0 High Speed Network 1 × Gigabit LAN Serial 1 × RS232 (RS422/485 selectable by Jumper) Audio High Definition Audio: Line-out / Line-in / Mic-in Power 1 × 12V DC adapter jack >Back to top         Internal Interfaces Q7 CPU MXM 230 pin connector IDE 2 × PATA (SATA to two IDE by SIL3811) SATA 1 × SATA connector 1 × SATA power connector LVDS 1 × 24bit LVDS connector 1 × Voltage inverter for display panel CRT 1 × CRT connector (supplied by Q7-VIA NANO by FPC cable) Printer 1 × Pin header for LPT Fan 1 × Fan power connector Buttons 1 × Power/Reset button >Back to top         Power and Environment Power +12V DC, max. 3A Operating Temperature 0 - 60°C Storage Temperature −20 – 85°C Humidity 0 – 90% (Non-condensing) >Back to top         Environmental CE Approved FCC Class B (tested with Q7-VIA NANO CPU module) RoHS Yes >Back to top         Ordering Information Art.No 3803 Product Name Q7-VIA NANO-CB Packing list Q7-VIA NANO-CB carrier board 13pin FPC cable Manual >Back to top
