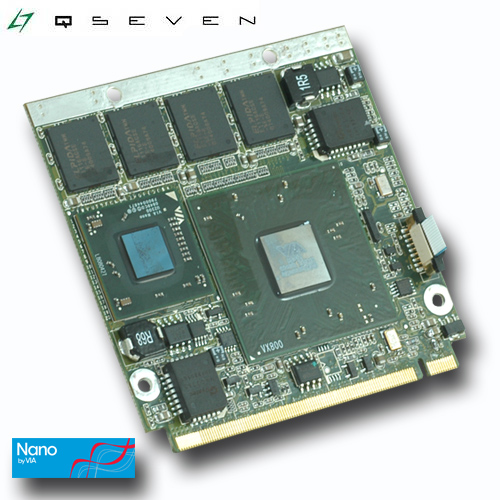

>visionsystems.de/Q7-Nano 1000 (3801.html)   Features CPU & Chipset: VIA Nano 1.0 GHz, VX800 Form Factor: Qseven, 70×70 mm² SDRAM: 512 MB DDR2 SATA: 2 channels USB: 6 x USB 2.0 High-Speed 2 x Express card 4 x PCIe x1 1 x SDIO Ethernet: Gigabit Marvell 88E8057 Display: 24-bit LVDS Panel, DVI and CRT Sound: High Definition Audio Low power consumption       Q7-Nano 1000 Quick Link: | Features | More Pictures | Overview | Application | Core Spedifications | Qseven Interface | Power and Environment | Environmental | Ordering Information | |   More Pictures Klick on the thumbnails to enlarge them … >Back to top         Overview The Q7-Nano 1000 COM (Computer on Module) uses the latest VIA NANO 64 bit CPU with 1.0 GHz, together with the all-in-one VX800 chipset, which integrates both the north- and south-bridges at a power consumption of 12.5 Watt maximum. The Q7 COM comes up with 512 MB onboard DDR2 SDRAM (1 GB optional) and also at the MXM connector implements high speed busses: PCIe, USB 2.0, Serial ATA, Gigabit Ethernet and SDIO. This module offers multiple graphical interfaces by LVDS and DVI. Additionally CRT displays can be used via a carrier board, using an extra 13 pin FPC cable. Power management helps for power saving standby mode. The module operates up to 60°C environment temperature with a passive heatspreader. Read the News Article…   Application Mobile Devices Ultra-compact Embedded Systems Video Display Factory Automation   Core Spedifications CPU VIA Nano 1.0 GHz, 64 bit (AMD64) 128 KB L1 cache 1 MB L2 cache with ECC Memory 512 MB DDR2 667 MHz SDRAM on board Optionally 1 GB Chipset VIA VX800 all-in-one, 533 MHz FSB Integrates North- and South-bridge Hardware decodes MPEG-2, MPEG-4,H.264, WMV9,VC1 BIOS Award Flash BIOS, 4MBit SPI >Back to top         Qseven Interface Connector Front side MXM 230 pin PCI Express 2 × PCIe x1 USB 6 × USB 2.0 High-Speed LAN 1 × Gigabit Ethernet by Marvell 88E8057 Supports boot from LAN (PXE or RPL LAN Server) Mass Storage 2 × SATA Low Pin Count 1 × LPC for carrier board SDIO 1 × SDIO for SD slot Display 1 × 24-bit LVDS 1 × VGA by FPC cable Sound 1 × High Definition Audio Management 1 × SMBus >Back to top         Power and Environment Power +5V DC, 12.5 Watt Standby +5V DC Monitor Onboard CPU temperature monitor Operating Temperature −20 - 60°C Storage Temperature −20 – 85°C Humidity 0 – 90% (Non-condensing) >Back to top         Environmental CE Approved FCC Class B (tested with Q7-VIA NANO-CB carrier board) RoHS Yes >Back to top         Ordering Information Product No. 3801 Product Name Q7-Nano 1000 Packing list Q7-Nano 1000 CPU module Manual, Driver-CD >Back to top
