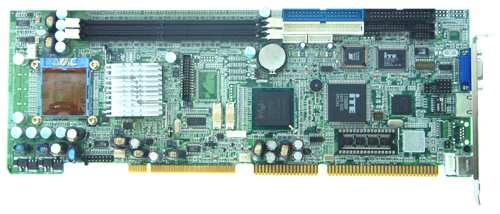

>visionsystems.de/VS-7360 VL (378.html)   Features Intel 852 GM chipset Supports Pentium M processors 1MB Cache up to 1,7 GHz Supports Pentium M processors 2MB Cache Dothan up to 1,8 GHz+ with 400 MHz FSB 2 x 184-pin DDR sockets for up to 2 GB RAM ( DDR 333 )     Zoom in Picture VS-7360 VL Quick Link: | Features | Overview | Hardware Specifications | I/O Interface | Timers | H/W monitoring | Environment | Power | Certification and Dimension | Ordering Information | Download | |   Overview The POWERFULL PICMG CARD! For Pentium M up to 1.8GHz   Hardware Specifications CPU Intel Pentium M , 1MB Cache up to 1.7GHz, 2MB Cache up to 1.8GHz (Dothan) Front side Bus 400 Form Factor full size PICMG BUS 16-bit ISA, 32-bit PCI Chipset Intel 852GM, ICH4 BIOS Award, 4MBit VGA Controller integrated in Chipset Interface VGA, LCD 18-bit, 24-bit BUS 4x AGP Resolutions CRT up to 1600 x 1200 LCD up to 1280 x 1024 Connectors DSUB 15 VGA, 20-pin header LCD LVDS Memory type DDR 200, 266, 300, no ECC Memory sockets 2 x 184-pin DDR DIMM up to 2GB max. >Back to top         I/O Interface Ethernet 1 x Intel82551 10/100BaseTx connector 1 x RJ45 USB 4 x USB 2.0 Com Ports 2 x RS232 connector 2 x 10-pin header LPT 1 x 26-pin header, supports EPP,ECP,bidirectional Infrared 1 x 5-pin header Firewire no IDE 2 x 40-pin box header, ATA 100 FDD 1 x 34-pin box header Keyboard/Mouse integrated MiniDIN >Back to top         Timers Real Time clock integrated in chipset Watch dog Timer 2 up to 128sec >Back to top         H/W monitoring Voltage +3.3V, +5V,+12V Vcore +5V, stand by 3.3Vsb Temperature 2 channels, for CPU and System FAN Speed 2 channels, one for CPU internal use, another for external system use >Back to top         Environment Operating Temperature 0°C - 60°C Storage Temperature -20°C - 80°C >Back to top         Power Power input support both AT or ATX power supply, select by jumper 3.3V is converted from 5V and not directly from Backplane or Power supply >Back to top         Certification and Dimension Certification CE, FCC classA Dimension 338.58mm x 122mm >Back to top         Ordering Information Art.No 378 Product Name VS-7360 VL Packing list VS-7360 VL PICMG card, CPU cooler, HDD / FDD cable, 2 x RS232,LPT cable, 2 x 2 USB , driver CD >Back to top       Download   Audio Driver Win9x/2K/XP  (Audio-drivers Win98/WinME/2000/XP) Chipset Driver Win9x/2K/XP  (Chipset-driver Win98/Win2000/WinME/WinXP) VGA Driver Win9X  (VGA-driver Windows 98SE/ME) VGA Driver Win NT 4.0  (VGA-driver Windows NT 4.0) VGA Driver Win2K/XP  (VGA-driver Windows 2000/XP) VGA Driver LVDS-driver  (LVDS-Driver) Manual  (Manual VS-7360VL (pdf)) Lan Driver Win9x/NT/2k/XP  (LAN-driver 95/98SE/ME/NT4/2000/XP) >Back to top
