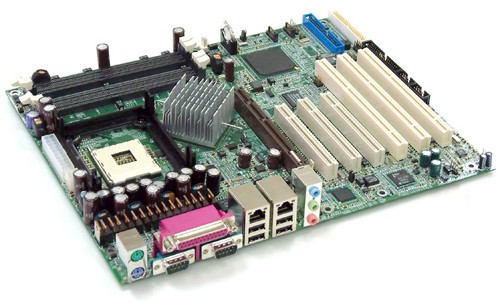

>visionsystems.de/VS-7320L2G (334.html)   Features CPU: Intel Pentium 4 Extrem Edition (Prescott) / Intel Pentium 4 (Northwood) / Celeron up to 3,2 GHz, supporting Hyper-Threading technology for all Prescott/Northwood processor up to 3.2GHz 4 x 184-pin DDR-SDRAM up to 4GB max. 3 x PCI-X 64-bit / 66MHz, 3 x PCI 32-bit / 33MHz Slots, 1 x AGP 2 x serial ATA 1 x 10/100 , 1 x Gigabit Eternet controller Intel 875P Hance Rapids Chipset Watch Dog Timer Audio,FDC Serial Ports: 4 x RS232, RS422/485 optional Parallel Port 4 x USB 2.0       VS-7320L2G Quick Link: | Features | More Pictures | Overview | Hardware Specifications | Ordering Information | Packing list | |   More Pictures Klick on the thumbnails to enlarge them … >Back to top         Overview industrial ATX Intel Pentium IV Mainboard with 400,533,800MHz FSB supports Intel P4 Extrem Edition Prescott CPU with 1M L2 Cache serial ATA interface supports Hyper-Threading Technology   Hardware Specifications CPU Intel Pentium 4 Extrem Edition (Prescott) CPU up to 3.2GHz with 1M L2 Cache all Intel Pentium 4 CPU`s up to 3,06 GHz (Northwood) with 400/533/800 MHZ FSB, supports Hyper-Threading Cache 1M L2 and 512K L2 Cache Chipset Intel 875P Hance Rapids Chipset VGA no On-board Slots 3 x PCI-X (64-bit,66MHz), 3 x PCI (32-bit,33MHz), 1 x AGP 8x slot Memory 4 x 184-pin socket, up to 4 GB DDR 266/333 SDRAM max. single-sided/double sided supports un-buffered and ECC support available bandwidth up to 3.2GB/s (DDR400) for single-channel mode 6.4GB/s (DDR400) in dual-channel mode BIOS Award System BIOS, 4M bits flash ROM Jumperless for CPU FSB Serial ATA 2 x serial ATA connector, data transfer bandwidth up to 150MB/s IDE interface 2 x 40-pin connector, dual Ultra ATA 33/66/100 channels,toal 4E IDE Devices FDD 1 x 34-pin Floppy Disk controller LAN 1 x 10/100 Ethernet and 1 x Intel 82541 Gigabit Ethernet controller Full duplex compliant with IEEE802.3x 2 x RJ45 connector Serial Port 4 x RS232, (2x DB9 and 2x 10-pin header) Optional with RS422/485 Parallel Port supports one parallel port, supports EPP/ECP USB 4 x USB 2.0 Audio Integrated AC-97 compatible audio Line-in / Line-out / Mic-in Watch Dog Timer 1 - 255 seconds time-out intervals IEEE 1394 no Keyboard/Mouse PC/AT compatible keyboard and PS/2 mouse interface System Monitor 3 FAN speed, (1 for CPU and 2 for system featuring with programable FAN speed) 2 temperature Power Req. 5V/+12V/+3.3V/+5Vsb, ATX Operating Temp. 0 to 60 celsius degree (149 degree F.) Storage Temperature -20 to 80 celsius degree Dimensions 305 x 244mm >Back to top         Ordering Information Art.No 334 Product Name VS-7320L2G >Back to top         Packing list >Back to top
