>visionsystems.de/VS-Taifun 765 (3242.html) |
|
|
|
 |
 |
|
 2.2GHz Core 2 duo Chipset Intel Q965 DDR2 2GB DRAM VGA, 2xGigaLAN, 6 x USB Backplane 3 x PICMG, 4 x PCI, 7 x ISA 500GB HDD SATA, DVD writer PC-Chassis 19" 4HU, 380W Power Supply
|
|
|
 |
|
 |

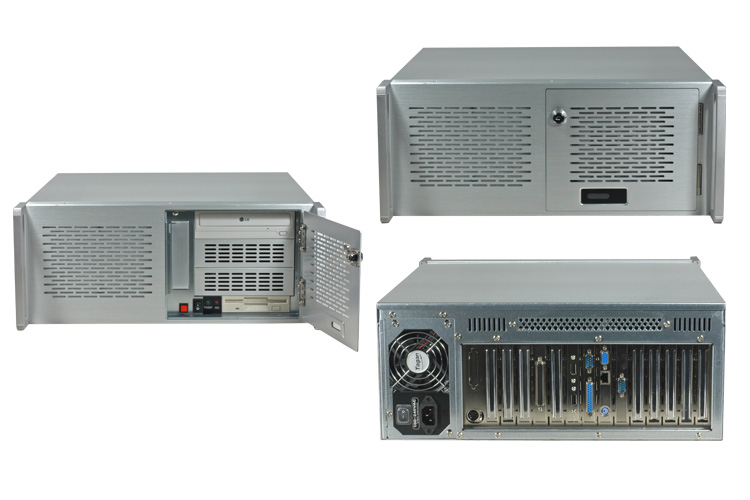

Zoom in Picture |
 |
|
VS-Taifun 765 |
|
|
|
|
Is an extremely robust, High-end Rackmount Industrial Computer with POWER PICMG, CPU 2.2GHz Core 2 duo |
|
Special Features
|
|
Dust proof and lockable front panel door with removable filter
Operating Temperature 0°C up to 60°C
|
|
|
|
|
|
|
|
CPU
|
|
Intel Core 2 duo 2,2GHz
|
|
Chipset
|
|
Chipset, Q 965 and ICH8
|
|
BIOS
|
|
Award System BIOS
|
|
Memory
|
|
2GB DDRAM2, supports 2x240-pin Dimm sockets up to 4GB DDR2 533/667/800MHz
|
|
VGA
|
|
Intel Q965 built-in Intel Graphic Media Accelerator 3000
Intel Dynamic Video Memory up to 256MB shared with sytem memory
|
|
DVI interface
|
|
no
|
|
LAN
|
|
2 x 10/100Base/1000Tx with RJ45, Intel 82573L
|
|
Ports
|
|
2 x RS232, 1 x LPT SPP,EPP,ECP
|
|
USB
|
|
6 x USB 2.0
|
|
Integrated Devices
|
|
3,5" SATA HDD 500GB
5,25" DVD-ROM read/write
|
|
Watchdog
|
|
Generates NMI or system reset with 1 - 255 sec/min of time out value
|
|
IDE
|
|
no
|
|
Solid State Disk
|
|
no
|
|
|
|
|
|
|
|
Model
|
|
VS CBP-14P
|
|
Slots
|
|
1 x CPU (PICMG), 4 x PCI, 9 x ISA
|
|
|
|
|
|
|
|
Construction
|
|
Heavy-duty steel with Alu front
|
|
Disk Drive housing
|
|
3 x 5.25"
2 x 3.5"
1 x 3.5"
|
|
System cooling
|
|
2 x 90mm Ball bearing Fan (57CFM), front mounted
1 x 60mm Ball bearing fan at the back panel
|
|
Air Filter
|
|
one removable filter at front panel
|
|
Controls
|
|
Power switch
Reset switch
Power Alarm buzzer
Power on LED, HDD LED
|
|
Hold-down Clamp
|
|
including 7 Slots of adjustable card retainer
|
|
Color
|
|
silver gray
|
|
Weight
|
|
15,8kg
|
|
Dimension
|
|
426.5 x 177,0 x 480,0 mm netto
545,0 x 290,0 x 640,0 mm brutto
|
|
|
|
|
|
|
|
Operating Temperature
|
|
0°-55°C
|
|
Storage Temperatures
|
|
-20°-80°C
|
|
Operating Humidity
|
|
5 - 95% non condensing
|
|
Shock
|
|
15G peak acceleration 10m/sec
|
|
EMI
|
|
CE / FCC compliant
|
|
Power supply
|
|
380W AT Power supply
|
|
Input range
|
|
90-135 /200-240 V AC, switch select
Frequency 47/63Hz
|
|
Input current
|
|
6A@ 115V AV , 4,3W@230V AC
|
|
Inrush current
|
|
30A@ 115V AC, 60A@ 230V AC (cold start)
|
|
Output
|
|
max 380W
|
|
|
|
|
|
|
|
Art.No.
|
|
3242
|
|
Product Name
|
|
VS-Taifun 765
|
|
Packing list
|
|
complete bootable System
Power cord
|
|
|
|
|
|
|
|
