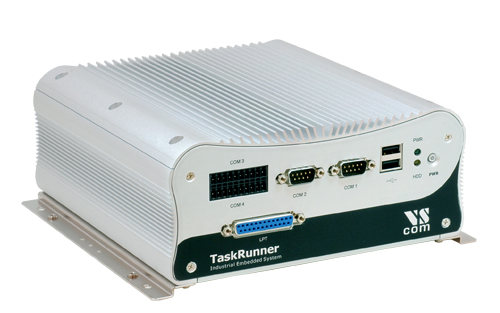

Integrated with Intel Atom N270 1.6GHz processor and 945GSE embedded chipset, TaskRunner 2000 series are an energy efficient solution in a lightweight system, featuring the performance and reliable operation of industrial grade non-stop system design.
TaskRunner 2000 series feature an on-board 1.6GHz Intel Atom N270 processor with 945GSE chipset. The entire system consumes less than 25 watts power, making the operating both energy efficient and cost effective. Coupled with its four serial ports (two support RS422/485 with auto-flow control feature), dual Gigabit LAN ports, four USB ports and one external CF socket, the TaskRunner 2000 series are also equipped with one mini-PCIe socket and one or two PCI slots for expansion needs. The system supports a wide range of DC input from 16V - 30V.
With guaranteed long product life cycle, it makes the the TaskRunner 2000 series the most ideal model for embedded vertical markets including factory automation, access control, machinery control, equipment control, outdoor advertising systems and self-service systems such as vending machines, ticketing kiosks and POS. |
|
|
|
CPU
|
|
Intel Atom N270 processor, 1.6GHz
|
|
Chipset:
|
|
Intel 945GSE + ICH7M
resolution up to 1600x1200
|
|
Memory
|
|
2GB DDR2 400/533MHz (2GB max.)
1x 240-pin SO-DIMM
|
|
I/O Interface Front
|
|
- 2x USB2.0 ports
- 4x serial port (COM3 and COM4 terminal block supporting RS232/422/485, auto-flow control)
- 1x Parallel port (only TaskRunner 2010 and 2020)
- ATX power on/off switch
- HDD access/power status LEDs
|
|
I/O Interface Rear
|
|
- 2x GbE LAN ports (Realtek RTL8168C/RTL8111C Chipset)
- 2x USB 2.0 ports
- 1x DB15 VGA port
- 1x PS/2 keyboard/mouse
- 1x speaker-out
- 1x CF card socket
- 1x antenna hole
- 16-30V DC power input
|
|
|
|
|
|
|
|
HDD/SSD
|
|
1x 2.5" SATA HDD drive bay
|
|
Flash
|
|
1x external CF socket
|
|
|
|
|
|
|
|
Construction
|
|
Aluminium chassis with fanless design
|
|
Expansion slot
|
|
- 1x PCI (TaskRunner 2010)
- 2x PCI (TaskRunner 2020)
|
|
Dimensions
|
|
195x 200x 65mm (TaskRunner 2000)
195x 200x 81mm (TaskRunner 2010)
195x 200x 101mm (TaskRunner 2020)
|
|
|
|
|
|
|
|
DC
|
|
16V - 30V DC on-board power support
|
|
AC
|
|
Optional 19V, 65W external power adapter
|
|
|
|
|
|
|
|
Full loading mode
|
|
ca. 24W
|
|
Standby mode
|
|
ca. 12W
|
|
|
|
|
|
|
|
Operating Temp.
|
|
-5°C - 55°C
|
|
Storage Temp.
|
|
-20°C – 80°C
|
|
|
|
|
|
|
|
Part number
|
|
3170
TaskRunner 2000
|
|
Part number
|
|
3171
TaskRunner 2010 (one PCI expansion slot)
|
|
Part number
|
|
3172
TaskRunner 2020 (two PCI expansion slots)
|
|
Packing list
|
|
TaskRunner Embedded System
(incl. Atom N270 1.6GHz, 2GB DDR2 RAM)
Driver CD, English documentation
|
|
|
|
|
