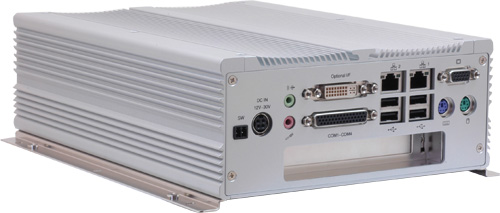

>visionsystems.de/TaskRunner 3110 (3159.html)   Features Intel Core Duo 1.8GHz fanless design Intel 945GME Chipset 2GB DDR2 Memory 2x GigaLAN / 6x USB 2.0 / DVI-D and VGA 3x RS232, 1x RS232/422/485 Compact Flash Adapter / HDD Space PCI Expansion Slot Power Input 12V-30V       TaskRunner 3110 Quick Link: | Features | More Pictures | Overview | System | Storage | Chassis | Power Requirements | Power Consumption | Environment | Ordering Information | |   More Pictures Klick on the thumbnails to enlarge them … >Back to top         Overview The rugged TaskRunner 3110 fanless PC is designed for space-critical applications which require extreme reliability, low-power consumption and versatile I/O configuration. For added flexibility, the TaskRunner 3110 also boasts three RS232 ports, one RS232/422/485 port and one PCI expansion slot. For data storage, the TaskRunner 3110 provides one Compact Flash socket and one 2.5 HDD drive bay. The system supports ATX mode power features and can accept a wide range of power supplies from 12V DC to 30V DC. Housed in a compact heavy-duty aluminium chassis, the TaskRunner 3110 is designed for reliable, maintenance-free industrial computing. The TaskRunner 3110 fanless PC offers a cost-effective solution for a multitude of mission-critical embedded computing applications in automation, machine control and POS systems.   System CPU Intel Core Duo Processor 1.8GHz Chipset: Intel 945GME Intel 82801 ICH7-M resolution up to 1920x1080 Memory 2GB DDR2 533/667MHz (4GB max.) 2x 240-pin DIMM I/O Interface Front 2x USB2.0 ports ATX power on/off switch HDD access/power/LAN status LEDs I/O Interface Rear 2x GbE LAN ports (Marwell Yukon 88E8053 Chipset) 4x USB 2.0 ports 1x DB15 VGA port 1x DVI-D port 1x DB44 serial port for 4x RS232 (COM2: RS232/422/485) 1x PS/2 for keyboard/mouse 1x speaker-out 1x mic-in 12-30V DC power input 2-pin remote power on/off switch >Back to top         Storage HDD/SSD 1x 2.5" SATA HDD drive bay Flash 1x on-board CF socket >Back to top         Chassis Construction Aluminium chassis with fanless design Expansion slot 1x PCI (TaskRunner 3110) 2x PCI (TaskRunner 3110P2) Dimensions 195x 268x 80mm (TaskRunner 3110) 195x 268x 101mm (TaskRunner 3110P2) >Back to top         Power Requirements DC 12V - 30V DC on-board power support AC Optional 19V, 120W external power adapter >Back to top         Power Consumption Full loading mode ca. 37W Standby mode ca. 19W >Back to top         Environment Operating Temp. -5°C - 55°C Storage Temp. -20°C – 80°C >Back to top         Ordering Information Part number 3159 TaskRunner 3110 (one PCI expansion slot) Part number 3107 TaskRunner 3110P2 (two PCI expansion slots) Packing list TaskRunner Embedded System (incl. Core Duo 1.8GHz, 2GB DDR2 RAM) Driver CD, English documentation >Back to top
