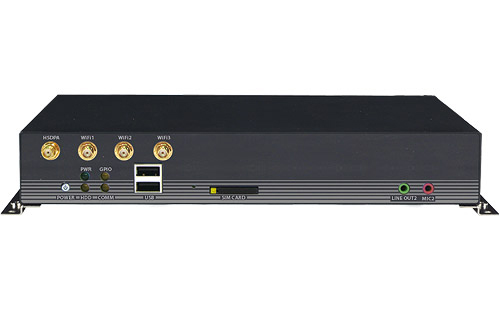

>visionsystems.de/VS-TaskRunner VTC 2100 (3156.html)   Features Intel® Pineview D without fan ICH-8M Chipset 2GB DDR2 1x LAN / 4x USB 2.0 / Audio 2x RS232, 1x RS232/485 Compact Flash Adapter / HDD Space 2 x miniPCIe Socket Dimensions 195 x 200 x 108mm     Zoom in Picture VS-TaskRunner VTC 2100 Quick Link: | Features | Overview | Chassis | Hardware | Memory | Video | Integrated Devices | I/O interface-Front | I/O interface-Rear | Power consumption | Environment | supported OS | Ordering Information | |   Overview Targeting automotive applications the VS-TaskRunner VTC 2100 with e13 certification. This CarPC has been designed for telematic and map-navigation applications, offering high shock resistance and low power consumption of max 20W from 12-24V sources. Combinded with GPS position engine and HSDPA module it can be used for tracking and controlling truck operation and routing. Actual position and operating conditions are known for every vehicle at every time. Firmware updates and upload of operating data can be done using Wireless LAN or Blutooth when the vehicle returns to base location. Certifications - CE approval - E13 mark - EN50155 >Back to top         Chassis Construction full size Aluminium Cooling system passive heatsink, fanless LED indicator Power on/off, Standby on Power Button, Power Status, HDD/CF access, WLAN/HSDPA, GPIO in front Expansion slot 2 x miniPCIe Socket Dimensions 172.2 x 248.8 x 47mm Power switch in front >Back to top         Hardware Processor Intel® Pineview D Front side BUS 533 MHz BIOS NA Chipset ICH-8M >Back to top         Memory Memory type 1 GB DDR2 (2GB max.) Memory socket 1 x SoDIMM DDR2 667/800 >Back to top         Video VGA controller embedded in Chipset Intel 945GSE Interface Dual VGA, LVDS >Back to top         Integrated Devices HDD Bay 1 x 2.5 SATA HDD or SSD Compact Flash internal CF card socket Optional 512MB, 1GB, 2GB, 4GB, 8GB Compact Flash Card Watch dog Timer Programmable watchdog timer, 1-63 sec. >Back to top         I/O interface-Front USB 2 x USB 2.0 Specials 4x antenna hole for WLAN, HSDPA, Bluetooth Slot SIM Socket Audio Mic-in, Line-out >Back to top         I/O interface-Rear Specials 1x antenna hole for GPS 1x GPIO LAN 1 x RJ45, Giga LAN supports PXE Boot from LAN USB 4 x USB 2.0 supports boot function from USB VGA 1 x 15-pin connector Com Ports total 3 x DSUB 9 male Com Port Modi 2 x RS232 and 2 x RS232/422/485 Audio Mic-in, Line-out >Back to top         Power consumption average system only NN with power supply NN >Back to top         Environment Operating Temp. -10°C - 50°C Storage Temp. -40°-+80°C >Back to top         supported OS Windows 2K, XP, 7 Linux Kernel 2.4 / 2.6 >Back to top         Ordering Information Art.No 3156 Product Name VS-TaskRunner VTC 2100 Packing list VS-TaskRunner VTC 2100 Embedded System CD, English documentation >Back to top
