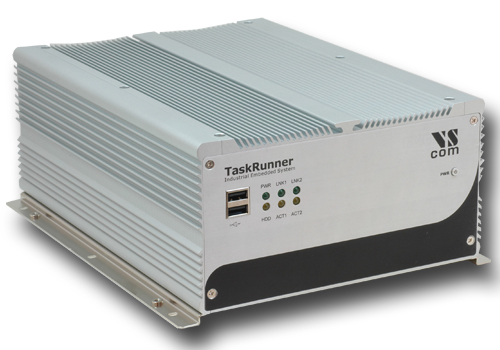

>visionsystems.de/VS-TaskRunner 3110 P2 (3107.html)   Features Supports Intel Core 2 Duo, Core Duo, Celeron M without fan Intel 945GME Chipset up to 4GB DDR2 Memory 2x GigaLAN / 6x USB 2.0 / DVI / Mic-in / Audio 3x RS232, 1x RS232/422/485 Compact Flash Adapter / HDD Space 2 x PCI Expansion Slot Power Input 12V-30V Dimensions 195 x 268.0 x 101mm     Zoom in Picture VS-TaskRunner 3110 P2 Quick Link: | Features | Overview | Chassis | Hardware | Memory | Video | Integrated Devices | Connectivity | Power supply | Power consumption | Environment | supported OS | Ordering Information | Options | |   Overview The really small,robust and powerful embedded system! Fan less, with ultra Core 2 Duo High Performance, Low Power Consumption, Professional construction inside! best solution for Thin Client, Internet Appliances, VoIP, Networking and Multimedia   Chassis Construction full size Aluminium Mounting configuration Desktop Filter no Cooling system passive heatsink, fanless LED indicator Power on/off in front , HDD/CF access , 2 x LAN access Expansion slot 2 x 32-bit PCI Expansion Slot for 16 and 24 x 11,4cm Dimensions 195 x 268 x 101mm Power switch in front >Back to top         Hardware Processor Intel Core 2 Duo, Core Duo, Celeron M CPU socket Socket 479 uFCPGA Front side BUS 533 / 677 MHz BIOS Phoenix Award Flash BIOS Chipset Intel 945GME >Back to top         Memory Memory type DDR2 up to 4GB Memory socket two 240-pin DDR2 DIMM socket >Back to top         Video VGA controller embedded in Chipset Intel 945GME BUS 4x AGP internal in chipset Video RAM up to 128MB dynamic video memory Interface VGA Resolutions up to 2048 x 1536/32bit Extras DVI connector >Back to top         Integrated Devices HDD Bay 1 x 2.5 SATA HDD or SSD Compact Flash complete built in Optional 512MB, 1GB, 2GB, 4GB, 8GB Compact Flash Card Specials Mic-in, 1 x Speaker-out Watch dog Timer Programmable watchdog timer, 1-63 sec. Real Time clock standard Keyboard/Mouse PS/2 connector for Keyboard and Mouse >Back to top         Connectivity LAN 2 x RJ45, 10/100/1000BaseTx supports PXE Boot from LAN USB 6 x USB 2.0 supports boot function from USB VGA 1 x 15-pin connector DVI 1 x DVI Interface Com Ports total 4 x DSUB 9 male Com Port Modi 3 x RS232 and 1 x RS232/422/485 LPT only on Board, no connector Audio Line-in ( Mic-in) Line-out ear-jet connectors >Back to top         Power supply external Power Adapter 120W Power input AC 100-240V, 50-60Hz Power output 19V, 6.32A >Back to top         Power consumption average system only NN with power supply 41W (with Core 2 Duo 1.8Ghz) >Back to top         Environment Operating Temp. -5°C-55°C Storage Temp. -20°C-+80°C >Back to top         supported OS Windows 7, XP, XP Embedded Linux Kernel 2.4 / 2.6 >Back to top         Ordering Information Art.No 3107 Product Name VS-TaskRunner 3110 P2 Barebone Packing list VS-TaskRunner 3110 P2 Embedded System CD, English documentation Power Adapter AC 230V to DC 12V-30V and cable >Back to top         Options Processor Core 2 duo Core duo Celeron M Memory DDR2 up to 4GB Mass storage device SATA HDD SSD CF card >Back to top
