>visionsystems.de/VS-Polaris (263.html) |
|
|
|
 |
 |
|
 1.6GHz Pentium M Chipset Intel 852GM DDR2 2048MB DDRAM VGA, 1xLAN, 4 x USB Backplane 1 x PICMG, 2 x PCI, 2 x ISA 160GB HDD, FDD,DVD heavy duty steel tower PC-Chassis 8Slot industrial, 300W Power Supply
|
|
|
 |
|
 |

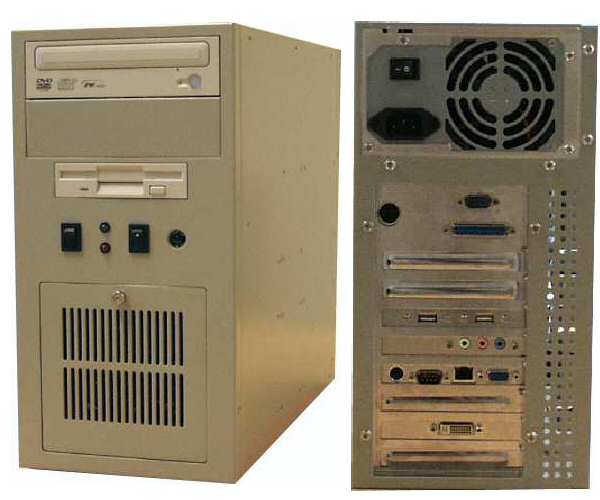

Zoom in Picture |
 |
|
VS-Polaris |
|
|
|
|
Ultra High Performance System, Professional construction inside!
best solution for industrial area |
|
|
|
Construction
|
|
Heavy duty steel
|
|
Mounting configuration
|
|
Desktop, Wallmount
|
|
Filter
|
|
replaceable air filter in front
|
|
Cooling system
|
|
1x 12cm cooling fan 88CFM
|
|
LED indicator
|
|
Power on/off in front, HDD
|
|
Expansion slot
|
|
2 x PCI and 2 x ISA
|
|
Dimensions
|
|
330 x 408 x 172mm
|
|
Switch
|
|
Power and Reset switch in front
|
|
|
|
|
|
|
|
Processor
|
|
Intel Pentium M 1.6GHz
|
|
CPU socket
|
|
FC-PGA 478Socket
|
|
Front side BUS
|
|
400 / 533
|
|
BIOS
|
|
Award
|
|
Chipset
|
|
Intel 852GM
|
|
|
|
|
|
|
|
Memory type
|
|
2048MB DDRAM
|
|
Memory socket
|
|
2 x 184-pin DDR 400/533
|
|
|
|
|
|
|
|
VGA controller
|
|
integrated in chipset Intel 852GM
|
|
BUS
|
|
4 x AGP
|
|
Video RAM
|
|
up to 64MB shared memory
|
|
Interface
|
|
VGA, 128-bit
|
|
Resolutions
|
|
up to 1920 x 1440, 16-bit color
|
|
Extras
|
|
no
|
|
|
|
|
|
|
|
IDE
|
|
1 x 160GB HDD
|
|
FDD
|
|
1 x FDD
|
|
CD-ROM/DVD
|
|
optional DVD read,write device
|
|
Compact Flash
|
|
internal CF Adapter on Board
|
|
PCMCIA
|
|
no
|
|
DiskonChip
|
|
no
|
|
Specials
|
|
no
|
|
Watch dog Timer
|
|
generates system reset with internal timer for 1 - 255
|
|
Real Time clock
|
|
chipset integrated RTC with on-Board battery
|
|
Keyboard/Maus
|
|
1 x PS/2 Y-cable
|
|
|
|
|
|
|
|
LAN
|
|
1 x RJ45, Intel 82551 10/100Mbps
supports wake on LAN
boot from LAN
|
|
USB
|
|
4 x USB 2.0
supports boot function from USB
|
|
IEEE 1394
|
|
no
|
|
VGA
|
|
1 x 15-pin connector
|
|
Com Ports total
|
|
2 x DSUB 9 male
|
|
Com Port Modi
|
|
1 x RS232
1 x jumper selecable RS232/422/485
|
|
LPT
|
|
1 x DSUB25
|
|
Sound
|
|
AC97 compliant, 1 x Line-in, Line-out, Mic
|
|
DVI
|
|
no
|
|
optional for Expansion Slots
|
|
optional 2 x CAN BUS, Digital I/0 PCI or ISA card
|
|
|
|
|
|
|
|
Output Power
|
|
300W
|
|
Input voltage
|
|
AC 95V - 135 / 200 - 240V, AC switch select, frequency 47-63Hz
|
|
Power consumption
|
|
coming soon
|
|
|
|
|
|
|
|
Operating Temp.
|
|
0°-50°C
|
|
Storage Temp.
|
|
-20°-+80°C
|
|
|
|
|
|
|
|
Windows
|
|
Win98, NT, 2K, XP, Embedded XP
|
|
Linux
|
|
Kernel 2.4 / 2.6
|
|
|
|
|
|
|
|
Art.No
|
|
263
|
|
Product Name
|
|
VS Polaris
|
|
Packing list
|
|
VS Polaris complete 8 Slot system
CD, English documentation
Power cord, mounting rail
|
|
|
|
|
|
|
|
