>visionsystems.de/VS-Trojan (256.html) |
|
|
|
 |
 |
|
 CPU 1,2GHz Pentium III DRAM 256MB SDRAM VGA & LAN on board FDD 20GB HDD Dimension 125 x 252 x 268mm PC-Chassis 4-slot PCI, 100W Power Supply
|
|
|
 |
|
 |

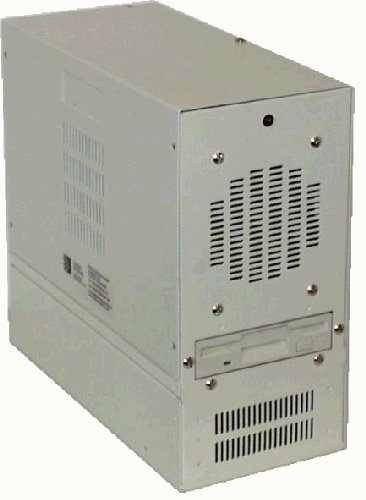

Zoom in Picture |
 |
|
VS-Trojan |
|
|
|
|
ULTRA POWER SYSTEM, small size, 1,2GHz Pentium PIII, for ALL applications like NET-PC, Mailboxsystem or Automation |
|
compact size industrial PC System |
flexible platform in industrial area. |
|
|
|
|
CPU
|
|
Intel Pentium III 1,2GHz
|
|
Chipset
|
|
Intel 815E
|
|
SDRAM
|
|
256MB SDRAM, optional 512MB
|
|
HDD
|
|
2.5", mind. 20.0 GB HDD, optional Flash from 4MB up to 1GB
|
|
VGA
|
|
PCI BUS, up to 4MB shared RAM, Resolution up to 1600x1200x256 colors
|
|
LAN
|
|
on Board 10/100 BaseTx integrated
|
|
Ports
|
|
1x RS232, 1 x RS232/485, 1 x LPT EPP,ECP,SPP
|
|
USB
|
|
optional 2 x USB on seperate Slot
|
|
Floppy
|
|
3,5" FDD
|
|
Watchdog
|
|
Programmable watchdog timer
|
|
BUS interface
|
|
PCI BUS, 3 x PCI Slot free for additional card
|
|
BIOS
|
|
AMI Flash BIOS
|
|
System
|
|
Complete built, tested and bootable, optional with Operating Systems
|
|
Mounting
|
|
Wall-Mount or Table-mount application
Mount holes for 2.5" HDD
|
|
Dimension
|
|
125mm x 252mm x 268mm WxHxD
|
|
Contruction
|
|
heavy-duty steel
|
|
Power supply
|
|
100W
|
|
|
|
|
|
|
|
Art.No
|
|
256
|
|
Product Name
|
|
VS-Trojan
|
|
Packing list
|
|
complete bootable System
Power cord
two wall mount rail sections
|
|
|
|
|
|
|
|
