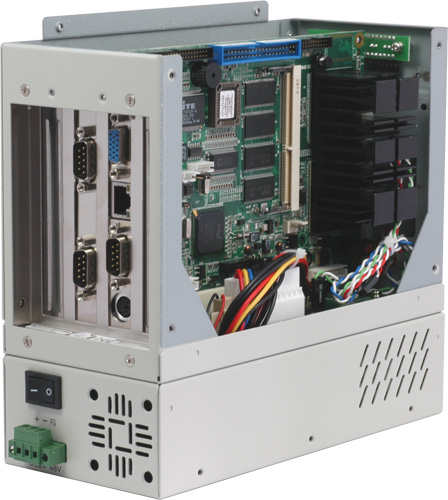

>visionsystems.de/VS-Kerberos CAN BUS (240.html)   Features CPU Intel Celeron 650Mhz Fan less 128MB on Board up to 384MB max. VGA, LAN on Board 2 x CAN BUS High Speed 2.0a/2.0b Compact Flash Adapter PC-Chassis 3 Slot PCI, 70W with 24-48V DC Dimension 96 x 214 x 215mm PCI BUS, 1 x PCI Slots free for additional cards Low Power System only 15W       VS-Kerberos CAN BUS Quick Link: | Features | More Pictures | Overview | Application | Hardware/Spec. | Environment | Software | Ordering information | |   More Pictures Klick on the thumbnails to enlarge them … >Back to top         Overview Pure POWER System, Fan Less, No Noise, only 29W   Application compact size and fan less industrial PC System flexible platform in industrial area   Hardware/Spec. CPU Intel Celeron 650MHz, Low Power, fanless Chipset Intel 815E SDRAM 128MB SDRAM on Board, 1 SoDIMM Socket up to 384MB Flash Disk optional Compact Flash card, optional IDE Flash, from 4MB up to 4GB or with HDD VGA integrated in chipset up to 64MB shared Memory LAN 10/100 BaseTx Realtec RTL8100 on Board Ports 1x RS232, 1 x RS232/422/485, 1 x LPT bidirectional USB optional 2 x USB 1.1 header CAN BUS 2 x CAN BUS High Sopeed 2.0a/2.0B DSUB 9 Watchdog Programmable watchdog timer BUS interface PCI BUS, 1 x PCI Slot free for additional card BIOS AMI Flash BIOS System Complete built, tested and bootable, optional with Operating Systems Mounting Wall-Mount or Table-mount application Mount holes for 2.5" HDD Dimension 96mm x 214mm x 215mm Contruction heavy-duty steel Power supply 70W Power consumption only 29W >Back to top         Environment Operating Temp. 0°-60°C Storage Temp. -20°-80°C >Back to top         Software Windows Win98, NT, 2K, XP, Embedded XP, CE 5.0 Linux Kernel 2.4 / 2.6 >Back to top         Ordering information Art.No 240 Product Name VS-Kerberos CAN BUS Packing list complete bootable System Power cord two wall mount rail sections >Back to top
