Features

  • Intel Celeron M, 600MHz without fan, inkl. 256MB DDR, VGA on board
  • 2x LAN / 4x USB 2.0 / LPT / Audio
  • 2x RS232 / 2x RS422/485
  • Screw Terminals with ±15 KV ESD protection and optical isolation
  • Compact Flash Adapter / HDD Space
  • PCMCIA Slot
  • Power Supply 9-36V
  • Dimensions 260 x 176.0 x 55mm
  • based on ICES 101 ETX Module





TaskRunner 3200

Quick Link: | Features | More Pictures | Overview | Chassis | Hardware | Memory | Video | Integrated Devices | Connectivity | Power supply | Power consumption | Environment | supported OS | Ordering Information | Download |

|

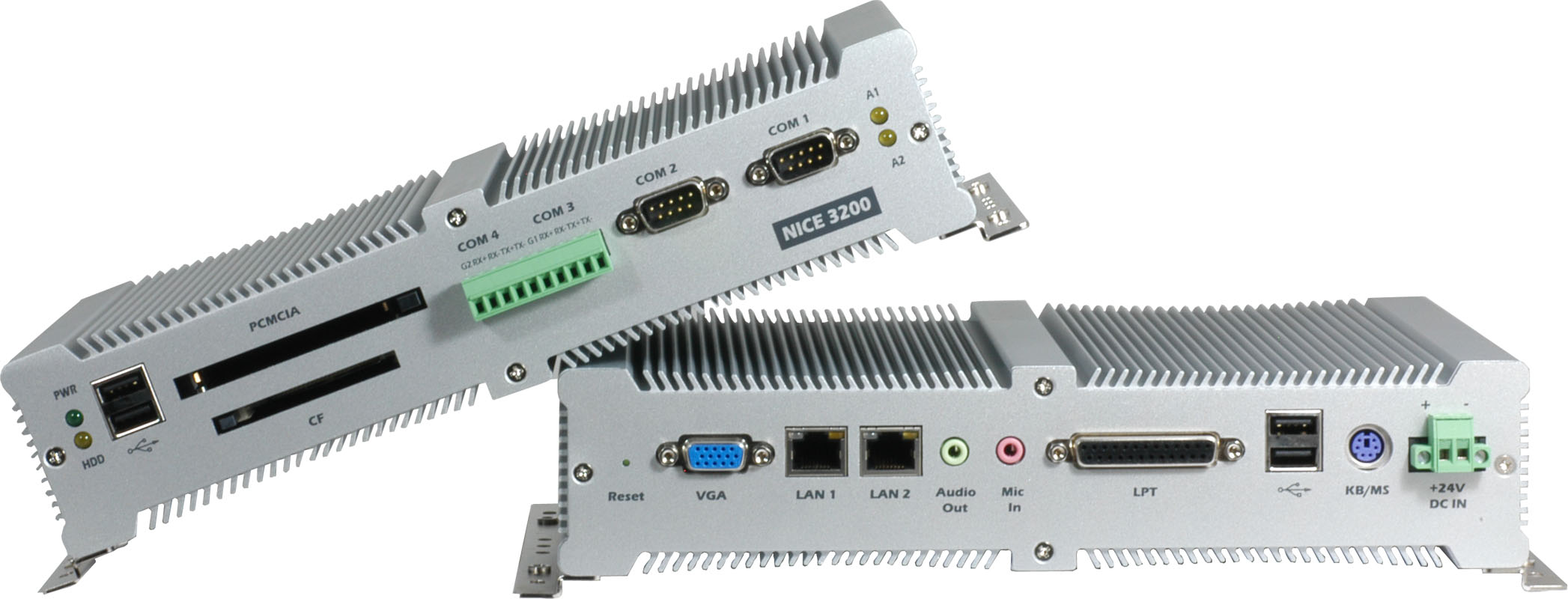

  More Pictures

Klick on the thumbnails to enlarge them …

>Back to top

  Overview

The really small,robust and powerful embedded system! Fan less, ultra High Performance, Low Power Consumption, Professional construction inside!
best solution for Thin Client, Internet Appliances, VoIP, Networking and Multimedia

  Chassis

Construction

full size Aluminium

Mounting configuration

Desktop

Cooling system

passive heatsink, fanless

Expansion slot

1 x PCMCIA socket Typ I/II,

Dimensions

260 x 176 x 55mm

Power switch

rear side

>Back to top

  Hardware

Processor

Intel Celeron M 600MHz

BIOS

Award

Chipset

Intel 852GM

>Back to top

  Memory

Memory type

256MB DDR up to 1GB

Memory socket

one 200-pin DDR SoDIMM socket for 1GB max.

>Back to top

  Video

VGA controller

embedded in Chipset

BUS

AGP 4x internal in chipset

Interface

VGA

>Back to top

  Integrated Devices

HDD Bay

1 x 2.5 PATA HDD

Compact Flash

complete built in
Optional 64MB,128MB,256MB,512MB, 1GB, 2GB Compact Flash Card

PCMCIA

1 x PCMCIA Typ I/II

Specials

Audio-out, MIC-in

Watch dog Timer

Programmable watchdog timer, 1-63 sec.

Real Time clock

standard

Keyboard/M

PS/2 connector for Keyboard and Mouse

>Back to top

  Connectivity

LAN

2 x RJ45, 10/100BaseTx
supports PXE Boot from LAN

USB

4 x USB 2.0
supports boot function from USB

VGA

1 x 15-pin connector

Com Ports total

2 x DSUB 9 male RS232
2 x Screw Terminal RS422/485 with ±15 KV ESD protection and optical isolation

Com Port Modi

2 x RS232 and 2 x RS422/485

LPT

1 x DSUB 25

Audio

Line-in ( Mic-in) Line-out ear-jet connectors

TV-out

no

S-Video

no

>Back to top

  Power supply

external Power Adapter

optional 120W

Power input

optional AC 100-240V, 50-60Hz

Power output

24V, 2.0A

>Back to top

  Power consumption

average system only

NN

with power supply

NN

>Back to top

  Environment

Operating Temp.

0°C-50°C

Storage Temp.

-20°C-+80°C

>Back to top

  supported OS

Windows

2K, XP, XP Embedded

Linux

Kernel 2.4 / 2.6

>Back to top

  Ordering Information

Art.No

172

Product Name

VS-TaskRunner 3200

Packing list

VS-TaskRunner 3200 Embedded System
CD, English documentation

>Back to top

Download


 (VGA-driver Windows XP/2000)
 (VGA-driver Windows 9x)
 (VGA-driver Windows NT 4.0)
 (Manual VS-Taskrunner 3200)
 (Audio driver for Windows XP/2000/ME/98)
 (Chipset-driver Windows XP/2000/ME/98)
 (USB driver Windows XP)
 (USB driver Windows 2000)
 (USB driver Windows ME)
 (USB driver Windows98 SE)
>Back to top
