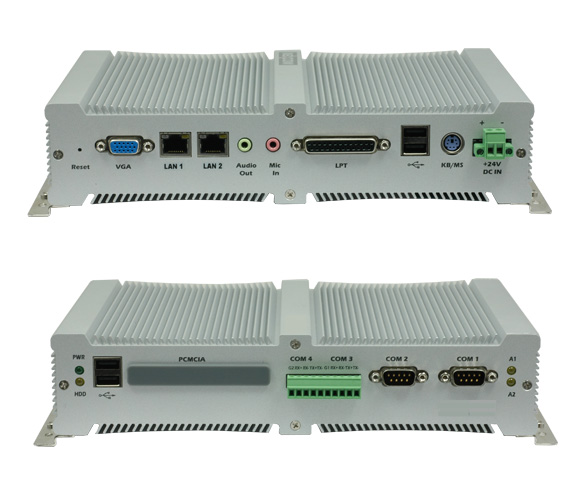

>visionsystems.de/VS-TaskRunner LX 3220 (161.html)   Features AMD LX800, 500MHz without fan, inkl. 256MB DDR, VGA on board 2x LAN / 4x USB 2.0 / LPT / Audio 2x RS232 / 2x RS422/485 Screw Terminals with ±15 KV ESD protection and optical isolation Compact Flash Adapter / HDD Space PCMCIA Slot Power Supply 9-36V Dimensions 260 x 176.0 x 55mm based on ICES 120 ETX Module     Zoom in Picture VS-TaskRunner LX 3220 Quick Link: | Features | Overview | Chassis | Hardware | Memory | Video | Integrated Devices | Connectivity | Power supply | Power consumption | Environment | supported OS | Ordering Information | Download | |   Overview The really small,robust and powerful embedded system! Fan less, ultra High Performance, Low Power Consumption, Professional construction inside! best solution for Thin Client, Internet Appliances, VoIP, Networking and Multimedia   Chassis Construction full size Aluminium Mounting configuration Desktop Filter no Cooling system passive heatsink, fanless LED indicator Power on/off in front , HDD/CF access Expansion slot 1 x PCMCIA socket Typ I/II, Dimensions 260 x 176 x 55mm Power switch rear side >Back to top         Hardware Processor AMD LX800, 500MHz CPU socket ETX 120 Module, with AMD LX CPU BIOS Award Chipset AMD Geode CS5536 >Back to top         Memory Memory type 256MB DDR up to 1GB Memory socket one 200-pin DDR SoDIMM socket for 1GB max. >Back to top         Video VGA controller embedded in Chipset BUS 4x AGP internal in chipset Interface VGA >Back to top         Integrated Devices HDD Bay 1 x 2.5 PATA HDD Compact Flash complete built in Optional 64MB,128MB,256MB,512MB, 1GB, 2GB Compact Flash Card PCMCIA 1 x PCMCIA Typ I/II Specials Audio-out, MIC-in Watch dog Timer Programmable watchdog timer, 1-63 sec. Real Time clock standard Keyboard/M PS/2 connector for Keyboard and Mouse >Back to top         Connectivity LAN 2 x RJ45, 10/100BaseTx supports PXE Boot from LAN USB 4 x USB 2.0 supports boot function from USB VGA 1 x 15-pin connector Com Ports total 2 x DSUB 9 male RS232 2 x Screw Terminal RS422/485 with ±15 KV ESD protection and optical isolation Com Port Modi 2 x RS232 and 2 x RS422/485 LPT 1 x DSUB 25 Audio Line-in ( Mic-in) Line-out ear-jet connectors TV-out no S-Video no >Back to top         Power supply external Power Adapter optional 120W Power input optional AC 100-240V, 50-60Hz Power output 24V, 2.0A >Back to top         Power consumption average system only 8.4W with power supply NN >Back to top         Environment Operating Temp. 0°C-50°C Storage Temp. -20°C-+80°C >Back to top         supported OS Windows 2K, XP, XP Embedded Linux Kernel 2.4 / 2.6 >Back to top         Ordering Information Art.No 161 Product Name VS-TaskRunner LX 3220 Packing list VS-TaskRunner LX 3220 Embedded System CD, English documentation >Back to top       Download   VGA Driver WinXP  (VGA-driver Windows XP/XP Embedded) VGA Driver Windows 2K  (VGA-driver Windows 2000) Manual  (Manual VS-Taskrunner 3220) Lan Driver Netware  (Lan driver Win 9x/2K/XP/CE/Linux) Audio Driver Win9x/ME/2K/XP  (Audio driver for Windows 98/ME/2K/XP) Crypto-driver Win XP  (AES crypto-driver for Win XP) >Back to top
